Multi Voltage Universal AC DC Power Adapter

AC Adapter Input: 100V-240V 0.25A 50/60Hz

DC Adapter Output: 3V,4.5V,6V,7.5V,9V,12V

DC Output Current: Max 2000mA(2A)

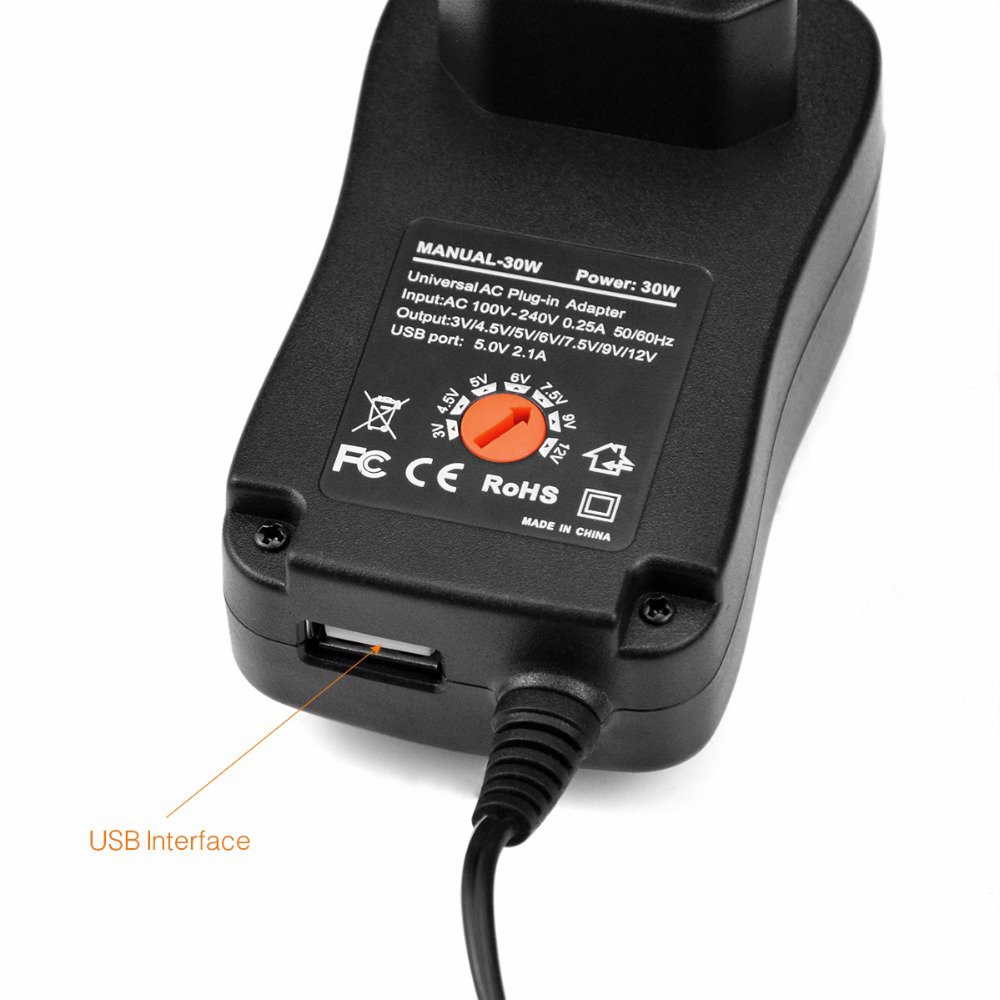

USB Port Output:5V 2.1A

Plug Type: UK

AC Adapter Wire cable length:1.2M(3.94ft/47.24inch)

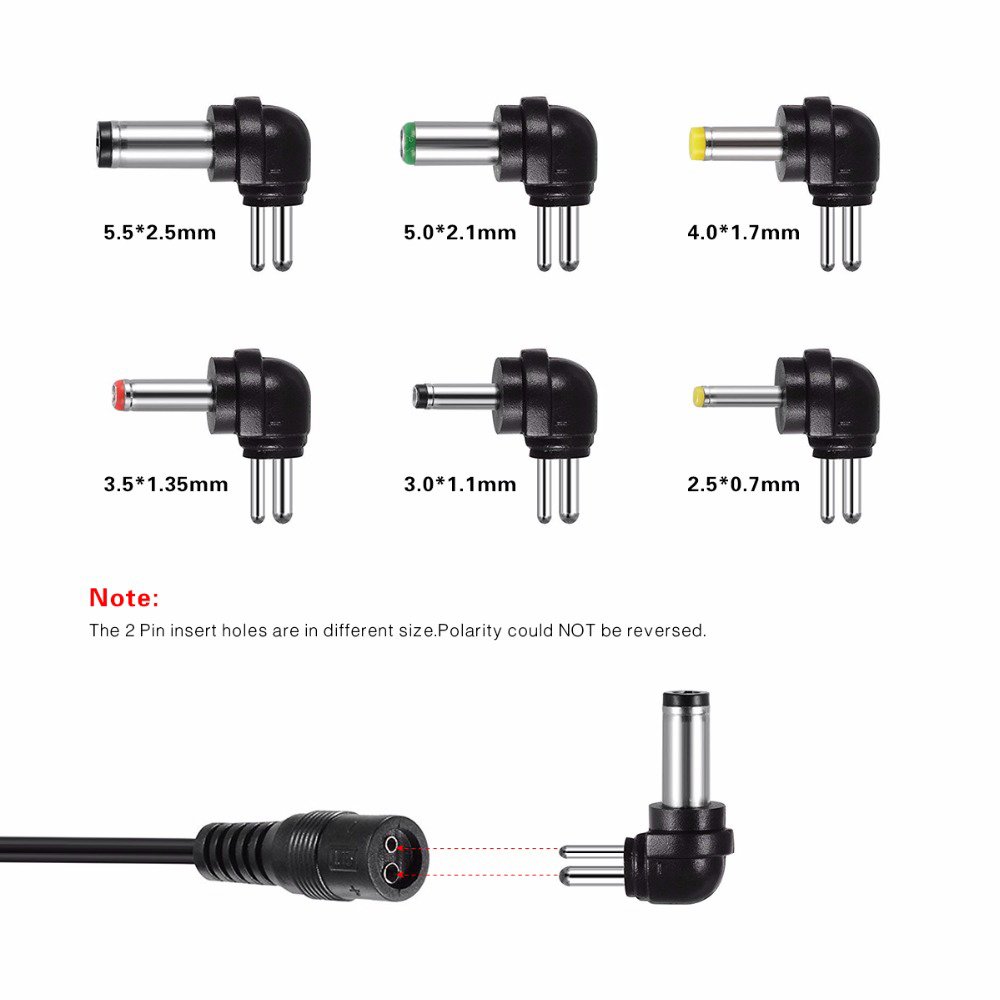

DC Tips size :

Tip1: 5.5x2.5mm

Tip2: 5.5x2.1mm

Tip3: 4.0x1.7mm

Tip4: 3.5x1.35mm

Tip5: 3.0*1.1mm

Tip6: 2.5*0.7mm

DC Plug Polarity: inner Positive(+), outer Negative(-). Polarity is irreversible

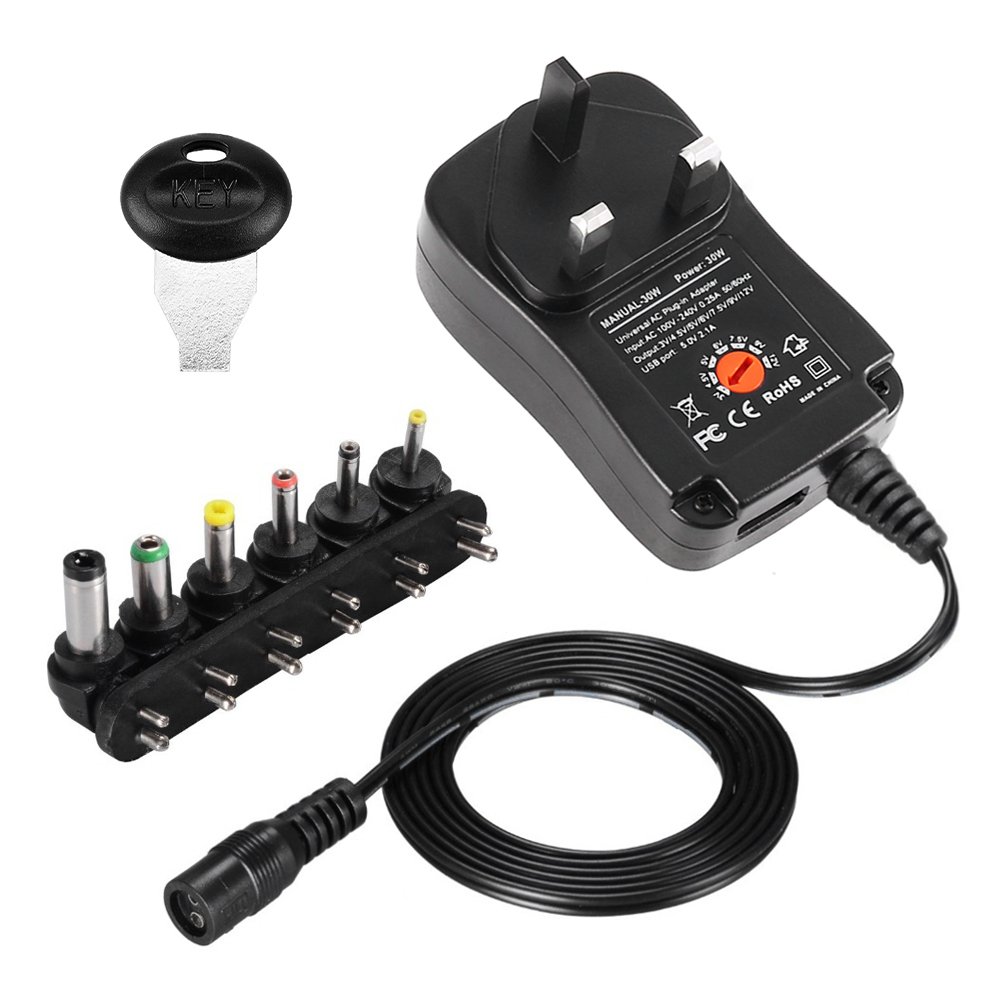

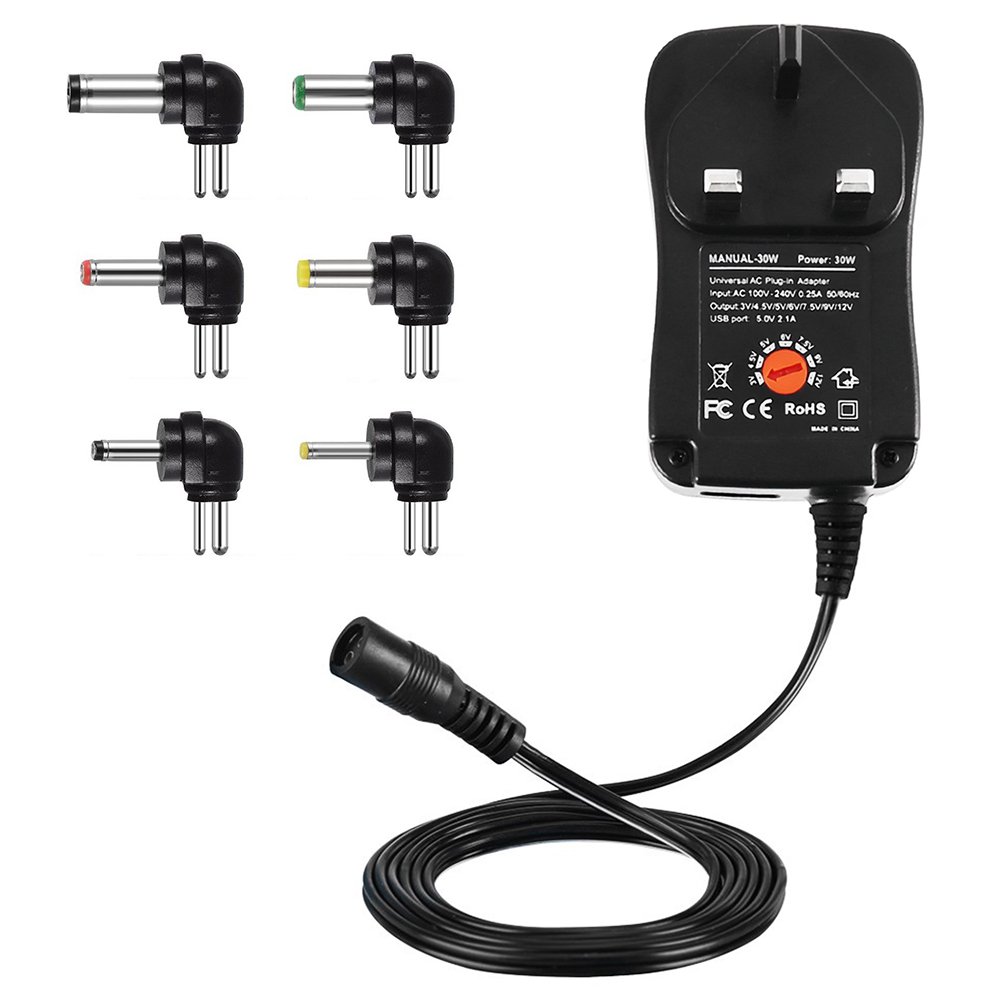

What You Get:

1 Multi Voltage Universal AC to DC Power Transformers

6 DC Tips

1 Little Key

Work step:

1)[Check the Polarity of your device]

This AC adapter only power supply for Center positive device.

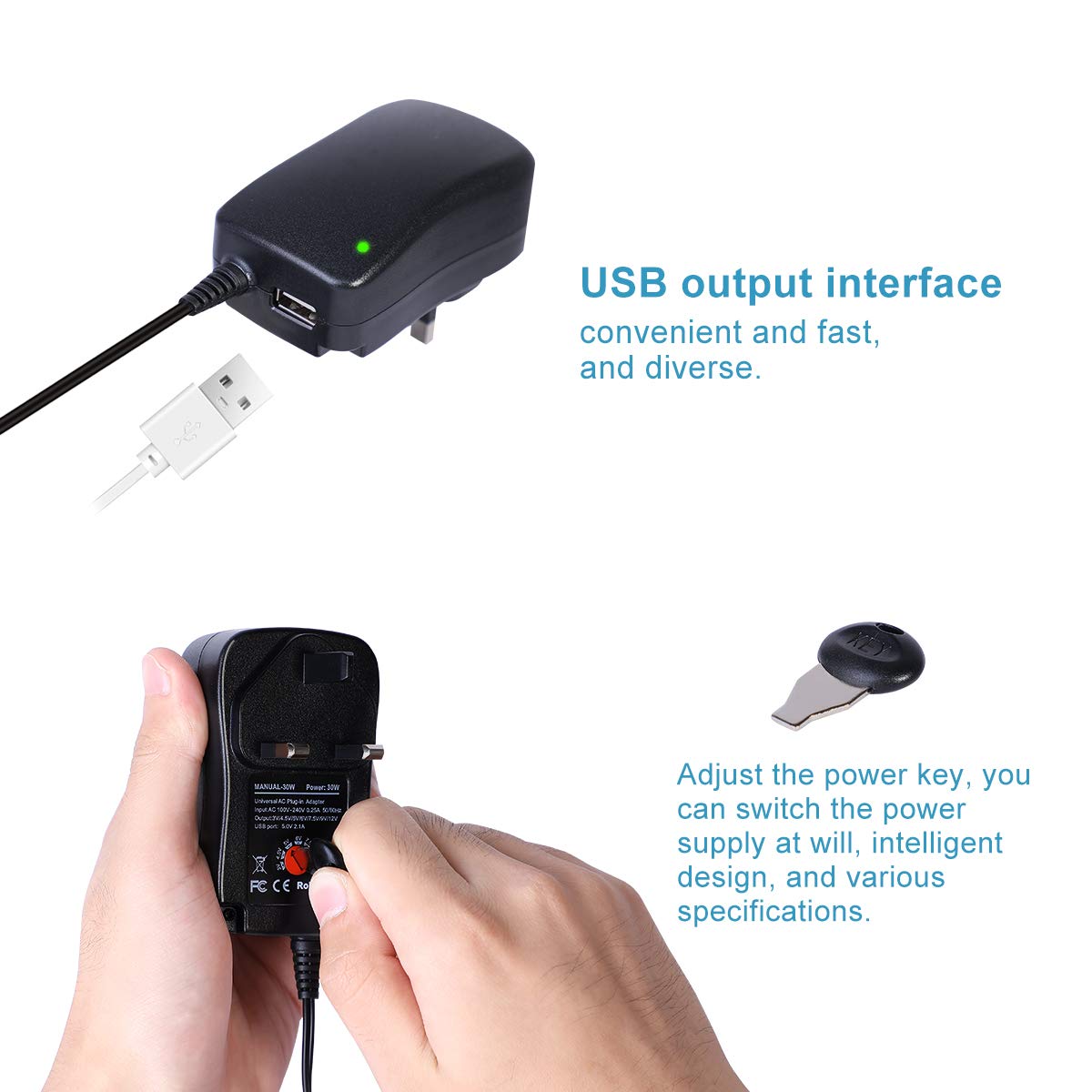

2)[Choose Correct Voltage before Powering]

Check the Voltage of your device, then set the right voltage.

The Multi Voltage Power Adapter with Smart IC control, will be full PROTECTION of over Voltages/ over Current/ short Circuits/ over Temperature.

But most Small household appliances usually don't have circuit protection, if with the wrong voltage, may damage your device.

3),Choose the correct DC adapter tip and make sure that it's firmly attached to the dc input port of your device.

4)The dc power adapter NOT compatible with other high power equipment;
